Testing equipment

Coordinate Measuring Machine (CMM)

- Being fully automated, enhances the inspection methodology by enabling quick and precise measurements. - Measurement range/CCX: 700x1000x600

CONTOUR TRACER

- Measure complex contours, chamferbevel angles, radii fillet of products - Measurement range/CCX: 0-200

ROUGHNESS TESTER

- Measure the surface roughness of the products Ra, Rz, Ry - Measurement range/CCX: 0.01-0.8

ROUNDNESS AND CYLINDRICITY TESTER

- The roundness and cylindricity of the products can be measured with its high accuracy. - Measurement range/CCX: 0.00001

OPTICAL PROJECTOR

- the complex profile can be inspected, the small dimension can be magnified. - Measurement range/CCX: 10X-50X

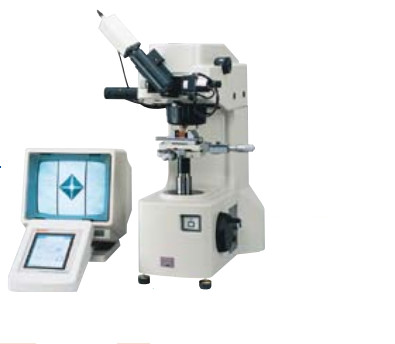

VICKERS HARDNESS TESTER

- The hardness and case depth of material can be checked - Measurement range/CCX: HV

Rockwell Hardness Tester

- The hardness of various scales such as HRA, HRB, HB, HRC, HR15N, HR30N can be inspected. - Measurement range/CCX

TENSILE STRENGTH TESTER

- The tensile strength, compressive resistance, bending strength of the material can be inspected. - Measurement range/CCX; 0 – 600kN

SPECTROMETER

- The chemical composition of the material by weight can be checked - Measurement range/CCX: Cast iron and Steel

TOOTH PROFILE MEASURING MACHINE

- Various gear profiles can be measured in accordance with the international standard. - Measurement range/CCX: 50-600

OPTICAL MICROSCOPE

- the microstructure of the material can be inspected and checked. - Measurement range/CCX: 5X -50X

SONATES PHASED ARRAY ULTRASONIC FLAW DETECTOR

- Phased array ultrasonic wedge - PA - Measurement range/CCX:: UT/PA 16:16
